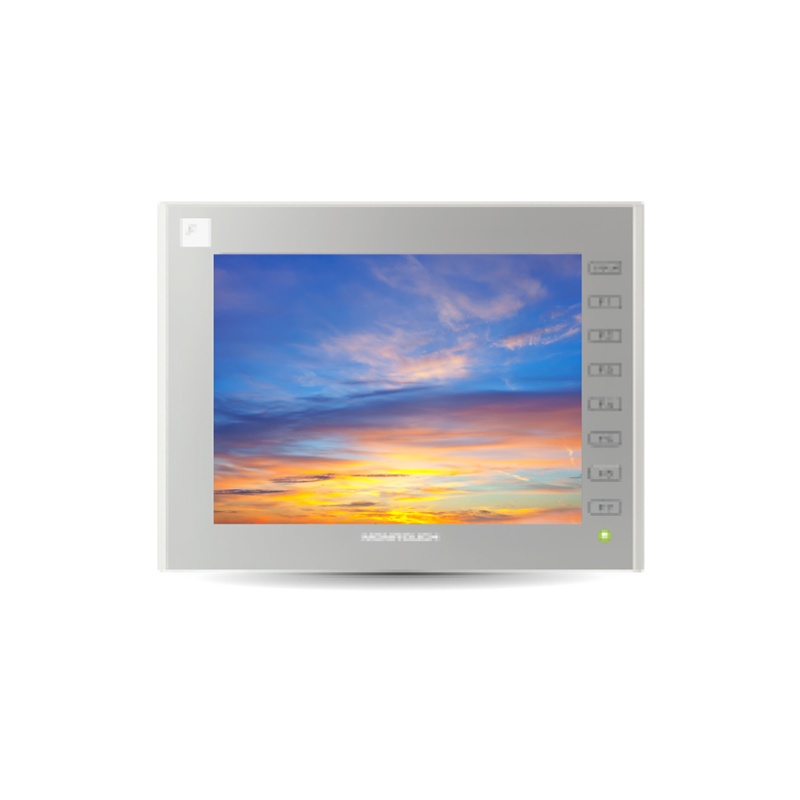

V9 Series Touch Screen Panel V9100IC

Product No.：20231023142442
Online Inquiry

Dimensions and Part Names

		V9100iC
Power supply	Rated voltage	100-240V AC/ 24V DC
	Permissible range of voltage	AC: -15%, +10%/ DC: ±10%
	Permissible momentary power failure	AC within 20ms, DC within 1ms
	Demand (maximum rating)	AC: 50VA or less/ DC: 17W or less
Insulation resistance		DC500V 10MΩ or more
Physical environment	Ambient temperature	0～50℃*1
	Ambient humidity	85%RH or less (without dew condensation)*1
	Operation altitude	2,000 meters or lower
	Atmosphere	Not to be exposed to corrosive gas, or conductive dust
	Storage temperature	-10～60℃*1
	Storage humidity	85%RH or less (without dew condensation)*1
	Overvoltage category	Category II
	Pollution degree	Pollution degree 2
Mechanical operating conditions	Resistance to oscillation	Complies with JIS B 3502 (IEC61131-2) Vibration frequency: 5-9Hz, pulsating with:3.5mm, 9-150Hz, Acceleration: 9.8m/s2(1G),X,Y,Z: 3 directions (10 times each)
Mechanical operating conditions	Resistance to shock	Complies with JIS B 3502 (IEC61131-2) Peak acceleration: 147m/s2(15G), X,Y,Z: 3 directions, three times each (18 times in total)
Electric operating conditions	Resistance to noise	Noise voltage: 1,500Vp-p, pulse width: 1μs, pulse rise time: 1ns
Electric operating conditions	Resistance to static discharge	Complies with IEC61000-4-2, contact: 6kV, air: 8kV
Installation conditions	Grounding	Grounding resistance: Less than 100Ω, FG/SG separation
	Structure	Front panel:Complies with IP66, Type 4X/13 *2 (when waterproof gasket is installed) Rear cover:Complies with IP20 Form: Single unit, Installation method: Panel mounting
	Cooling system	Natural air cooling
	Dimensions WHD(mm)	303.8×231.0×54.0
	Panel cutout (mm)	289.0×216.2（+0.5/-0）
Case color		Light gray (black front housing for black model)
Material		PC resin

*1: Use at a wet-bulb temperature of 39°C or less because higher temperatures may cause failure.

Performance Specifications

Screen memory (FROM)		64MB
Backup memory (SRAM)		800KB
Display	Display device	TFT color LCD
	Resolution	640×480
	Display size	10.4″
	Colors	16.7 million *3
	Backlight	LED
	Backlight life	70,000 hours
Touch switch	Type	Analog resistance film
Function switch	Quantity	8
External interface	D-Sub 9-pin (CN1)	RS-232C/ RS-485(2-wire system)/ RS-422(4-wire system), Asynchronous type, Data length: 7,8 bits, Parity: even, odd, none, Stop bit: 1, 2 bits, Baud rate: 4800, 9600, 19200, 38400, 57600, 76800, 115200, 187500*4bps
	Modular 8-pin （MJ1/MJ2）	RS-232C/ RS-485(2-wire system), Asynchronous type, Data length: 7,8 bits, Parity: even, odd, none, Stop bit: 1, 2 bits, Baud rate: 4800, 9600, 19200, 38400, 57600, 76800, 115200 bps
	SD card	One card slot provided as standard
	Ethernet	1ch, Baud rate: 100Mbps, 10Mbps
	Wireless LAN	-
	USB	Type A,Type mini-B(Ver.2.0)
	Sound output	-
Clock	Backup period	5 years (Ambient temperature 25°C)
Clock	Calendar accuracy	Gap ±90 sec. per month (Ambient temperature 25°C, when power is not supplied)
Standard	CE marking*5	EN61000-6-2,EN61000-6-4
	UL･cUL*5	UL61010-1、UL61010-2-201*6
	KC*7	Compliant
	Radio Act	-
Classification Standard		-

*2: DC products only. Hardware of Ver. b or later.
*3: For displaying pictures, 3D parts,video, and RGB input (excluding high-speed mode) only. Other parts are displayed in 65,536 colors.
*4: Only for Siemens MPI (Incompatible with DUR-00).
*5: DC products only.
*6: Only for Hardware Ver. f or later. Applicable standard for Hardware Ver. a to e is UL 508.
*7: Black model not certified
